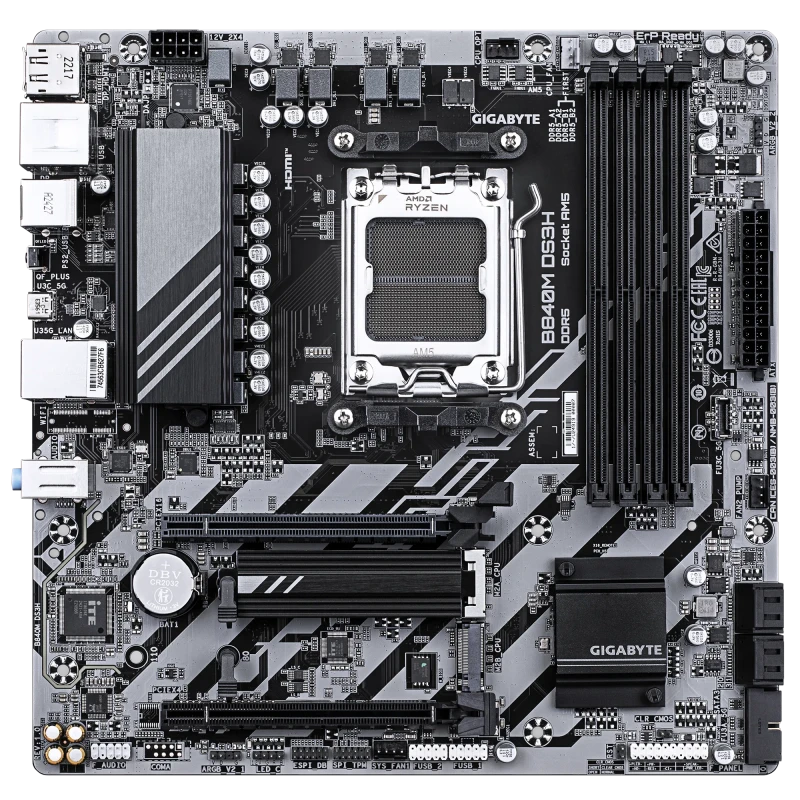

Gigabyte B840M DS3H DDR5 AMD AM5 Socket Motherboard
Inhouse product
Quick Overview
- Chipset - AMD B840
- Sockets Supported - AM5
- Supported CPU - AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
- Generation - Not Applicable
- Memory Slot - 4
- Memory Max. - 256GB
- Back-Connect Design - No
- Body Color - Black & Grey
-
৳14,500.00 -
৳8,200.00
৳8,500.00 -
৳53,500.00
The Gigabyte B840M DS3H DDR5 motherboard is a compact and powerful Micro ATX board designed for AMD’s latest AM5 socket processors, including Ryzen 7000, 8000, and 9000 series. It features support for ultra-fast DDR5 memory up to 8200 MHz (OC), with four DIMM slots allowing up to 256 GB of system memory. Built on the AMD B840 chipset, it offers dual PCIe 4.0 M.2 slots for high-speed storage, a PCIe 4.0 x16 slot for graphics, and robust connectivity including USB 3.2 ports and Gigabit LAN. With enhanced power delivery, solid pin connectors, and Gigabyte’s signature Ultra Durable design, it’s a reliable choice for gamers and creators seeking performance and stability in a compact form factor.
CPU & Chipset
- Socket: AMD AM5
- Supported CPUs: AMD Ryzen™ 7000, 8000, and 9000 Series processors
- Chipset: AMD B840
Memory
- Type: DDR5
- Slots: 4 x DDR5 DIMM sockets
- Capacity: Up to 256 GB (64 GB per DIMM)
- Speed Support: Up to DDR5-8200 MT/s (OC), with support for multiple overclocked frequencies including 8000, 7800, 7600, 7200, 6800, 6400, 6000, 5600, 5200, 4800, and 4400 MT/s
- Architecture: Dual channel
- ECC Support: Non-ECC, unbuffered DIMMs
Gaming Features
- X3D Turbo Mode: One-click BIOS feature that boosts gaming performance, especially for Ryzen X3D and non-X3D CPUs
Audio & Networking
- Audio: High-definition audio with Realtek codec
- LAN: Gigabit Ethernet
Expansion & Storage
- Expansion Slots: PCIe slots for GPU and other add-ons
- Storage Interfaces: Multiple SATA ports and M.2 slots for SSDs
Power & Cooling
- Power Phases: Optimized VRM design for stable power delivery
- Cooling: Multiple fan headers and thermal sensors
Form Factor & Build
- Form Factor: Micro ATX
- Build Quality: Designed for DIY-friendly installation and durability
