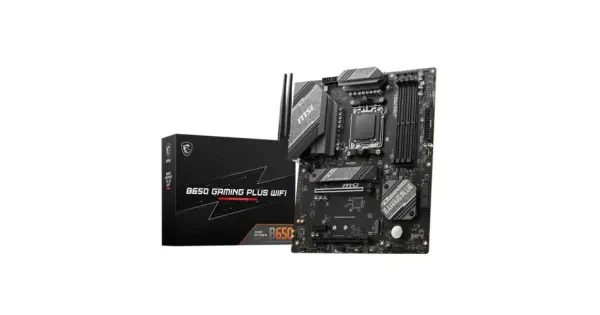

MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard

Basic Information....

Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Chipset: AMD B650

Form Factor: ATX
243.84mmx304.8mm

Audio: Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots....

PCI: 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Memory....

Type: DDR5

Slots: 4 DIMMs

Supported Memory: Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

Maximum Memory: 192GB

Graphics....

Graphics: 1x HDMI

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz
AMD MULTI-GPU Support

Connector & Ports....

HDMI: 1x HDMI

Display Port (s): 1x DisplayPort

USB (s): 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN Port (s): Realtek 8125BG 2.5G LAN

Wireless Communication module: AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3

Supported Storage: 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

RAID: Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Internal I/O Ports
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Others....
Special Features: 4x EZ Debug LED

Warranty Information....
Manufacturing Warranty: 3 Years
