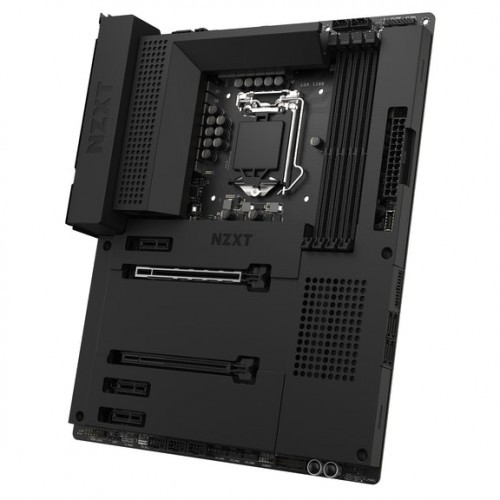

NZXT N7 Z590 Matte Black Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard
(0
reviews)
Inhouse product
Price
৳25,000.00
/1
Quick Overview
Share
Top Selling Products
-
৳14,500.00 -
৳8,200.00
৳8,500.00 -
৳53,500.00
? Core Features
- CPU Support: Intel Socket LGA1200, compatible with 10th and 11th Gen Intel Core processors
- Chipset: Intel Z590, offering advanced connectivity and performance tuning
- Form Factor: ATX — standard size for most gaming and performance builds
? Performance & Memory
- Memory Support:
- Up to 128 GB DDR4 across 4 DIMM slots
- Dual-channel architecture
- Overclocking support: up to 4600+ MHz (11th Gen) and 4266+ MHz (10th Gen)
- Intel XMP 2.0 support for easy memory tuning
- Power Design: 12+2 DrMOS power phases for stable and efficient power delivery
? Graphics & Expansion
- Integrated Graphics:
- Intel Xe Graphics (11th Gen)
- Intel UHD Graphics (10th Gen)
- Expansion Slots:
- PCIe slots for GPUs and other add-ons
- Supports AMD 2-Way CrossFireX multi-GPU setups
? Connectivity
- Wireless: Intel Wi-Fi 6E and Bluetooth 5.2 for ultra-fast wireless performance
- Audio: Realtek ALC1220 8-channel HD audio with Nichicon capacitors for premium sound
?️ Display Outputs
- HDMI Support:
- HDMI 2.0 (11th Gen) and HDMI 1.4b (10th Gen)
- Max resolution: 4096x2160 @ 60Hz
?️ Additional Highlights
- Operating System: Windows 10 64-bit or newer
- Warranty: 3 years from NZXT
| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 10th and 11th Generation Processors Turbo Boost Max 3.0 Technology | |
| Chipset | Z590 | |
| Form Factor | ATX | |
| Audio | Realtek ALC1220 Codec 8-Channel High Definition Audio 32-bit / 192kHz DAC Playback Nichicon Fine Gold Series Capacitors | |
| Expansion Slots | ||
| PCI | 1x PCIe x16 (x16 mode) (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0) 1x PCIe x16 (x4 mode) 3x PCIe 3.0 x1 | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM Slots (Dual-channel Memory Architecture) | |
| Supported Memory | OC Frequency (11th Gen CPUs): 4600+ MHz OC Frequency (10th Gen CPUs): 4400+ MHz Base Frequency (11th Gen CPUs): 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Base Frequency (10th Gen CPUs): 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Intel XMP 2.0 Support | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Intel Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs) HDMI 2.0 / HDMI 1.4b HDMI Max Resolution: 4096x2160@60Hz AMD 2-Way CrossFireX Technology | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0 | |
| Internal I/O Ports | 1x M.2 (M Key), Type 2242/2260/2280 1x M.2 (E Key) (For wireless cards) 4x SATA 6Gbps Ports 1x USB 3.2 Gen 2 Header (Type-C) 2x USB 3.2 Gen 1 Header (Up to 4 ports) 3x USB 2.0 Header (Up to 6 ports) 1x Front Panel Audio 1x CPU_FAN Connector (Up to 24W) 1x AIO_PUMP Connector (Up to 24W) 5x SYS_FAN Connector (Up to 24W) 2x NZXT RGB LED Header 1x 5V ARGB Header 1x 12V RGB Header 1x 24-pin EATX Power 1x 8-pin ATX 12V Power 1x 4-pin ATX 12V Power 1x Power Button 1x Reset Button 4x POST LEDs | |
| LAN Port (s) | Realtek RTL8125BG 2.5G | |
| Supported Storage | 1x M.2 Type 2242/2260/2280 (PCIe x4 mode) 1x M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) 4x SATA 6Gb/s RAID 0/1/5/10 Support Intel Smart Response Technology Intel Rapid Storage Technology Intel Optane Memory | |
| Wireless Communication module | Intel Dual-Band Wireless: AX210 Wi-Fi 6E Protocol: 802.11 a/b/g/n/ac/ax Frequency Bands: 2.4 / 5 / 6 GHz MU-MIMO Support Bluetooth V5.2 | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
